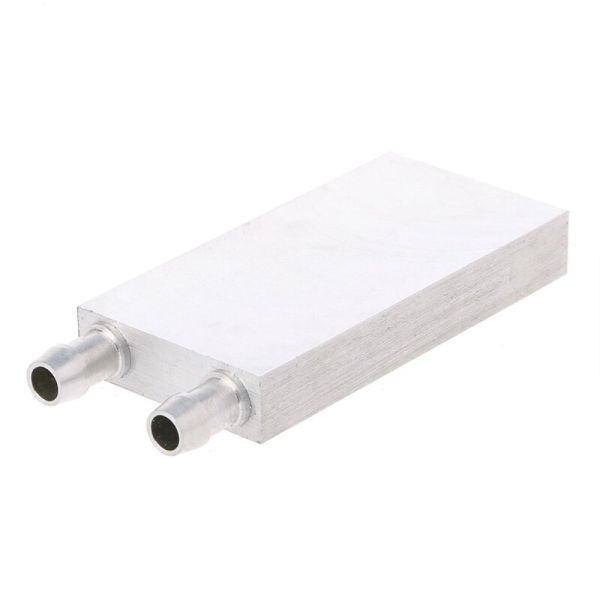

Suitable for computer CPU cooling, GPU, VGA, CHIP, industrial frequency conversion driver, laser head cooling, air conditioning evaporator, and industrial control cabinet cooling.
Heat transfer mode: Recuperative heat exchanger
Specification: side export water
Water flow channel: double U channel
Size: 80*40*10mm/1.57*1.57*0.39inch
The outer diameter of water mouth: 8mm/0.31inch
Fitting hose: inner diameter of 7-8mm/0.28-0.31inch
Process: vacuum brazing
Surface treatment: polishing
Size: 80*40*10mm/1.57*1.57*0.39inch; Can be used to patch two 40mm Peltier in the same Cooler
Material: Aluminum
The diameter of the Internal flow channel is 6mm round hole channel; Integration of parts soldering; The leakage rate of parts is less than 5 x 10-6mbar.l/s
Nozzle: 8 - 9.5MM, Can use for Inner dia 7mm-8mm water cooling pipe
