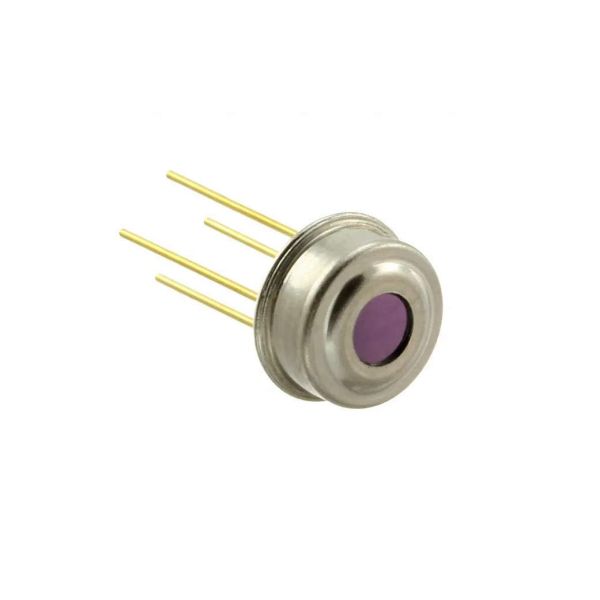

MLX90614 is an Infra-Red thermometer for non-contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning ASSP are integrated into the same TO-39 can. With low noise amplifier, 17-bit ADC and powerful DSP unit, high accuracy and resolution of the thermometer is achieved./br> The thermometer comes factory calibrated with a digital PWM and SMBus (System Management Bus) output. As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in a range of -20 - 120 ˚C, with an output resolution of 0.14 ˚C and the POR default is SMBus.
Applications:
High precision non-contact temperature
measurements; Thermal Comfort sensor for Mobile Air
Conditioning control system; Temperature sensing element for residential
commercial and industrial building air conditioning
Windshield defogging;
Automotive blind angle detection;
Industrial temperature control of moving parts;
Temperature control in printers and copiers;
Home appliances with temperature control;
Healthcare;
Livestock monitoring;
Movement detection;
Multiple zone temperature control – up to 100
sensors can be read via common 2 wires Thermal relay/alert
Body temperature measurement
Specification:
Sensor Type Digital, Infrared (IR); Sensing Temperature - Local- 40°C ~ 85°C; Sensing Temperature - Remote-70°C ~ 380°C (IR)
Output Type PWM, SMBus; Voltage - Supply 2.6V ~ 3.6V; Resolution16 b
Features Sleep Mode; Accuracy - Highest (Lowest)±0.5°C (±4°C)
