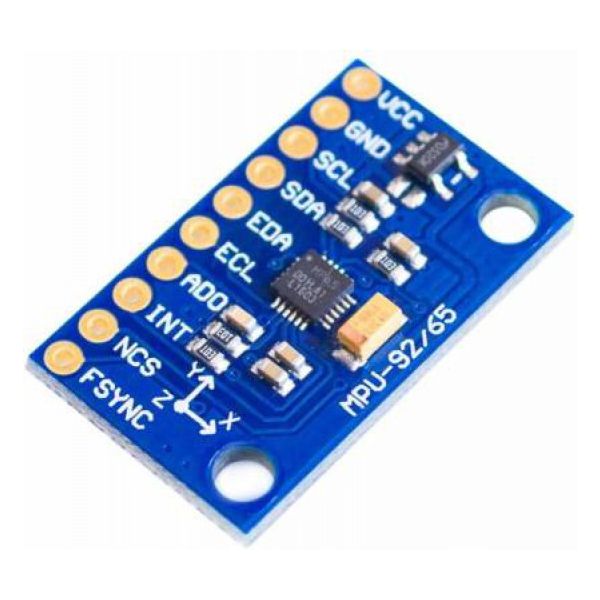

Alttitude - Gyro - Accelerator - Magnetometer - Tilt - Sensor Module (GY-9250 MPU6500)

Product Description:

• The MPU-6500 is the company’s second-generation 6-axis MotionTracking device for smartphones, tablets, wearable sensors, and other consumer markets.
• The MPU-6500, delivered in a 3x3x0.9mm QFN package, is the world’s smallest 6-axis MotionTracking device and incorporates the latest InvenSense design innovations for MEMS gyroscopes and accelerometers, enabling dramatically reduced chip size and power consumption, while at the same time improving performance and cost.
• The new MPU-6500 addresses the market requirements for high-performance applications such as pedestrian navigation, context-aware advertising, and other location-based services, along with supporting the specifications for emerging wearable sensor applications such as remote health monitoring, sports and fitness tracking, and other consumer applications. 1 x 6DOF MPU 6500 Sensor 6-axis Gyroscope Acceleration Module SPI/IIC For Arduino

Specification:

• MPU-6500 modules (three-axis gyroscope + triaxial accelerometer)
• Module Model: GY-6500
• Power supply:3-5v (internal low dropout regulator)
• Communication: Standard IIC / SPI communication protocol -Chip 16bit AD converter, the output data 16 Gyro range: ± 250 500 1000 2000 ° / s Acceleration range: ± 2 ± 4 ± 8 ± 16g
• Using Immersion Gold PCB, machine welding process to ensure quality 2.54mm pin pitch Module size 15mm * 25mm
