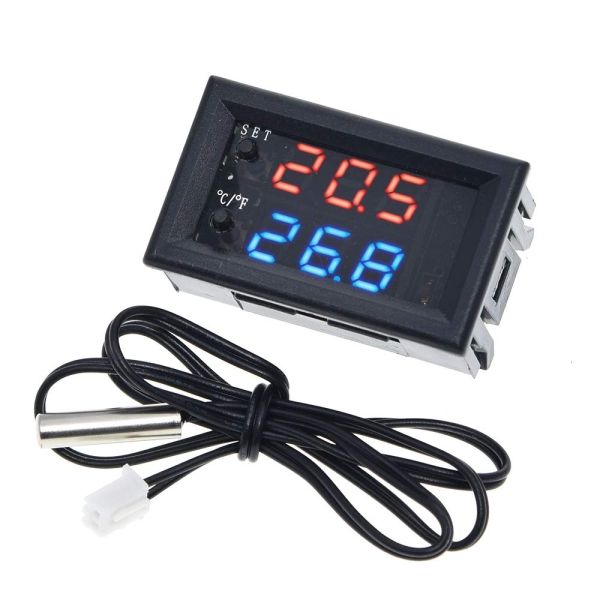

Modeling simple, elegant, LCD panels inline connections, moisture-resistant, strong anti-interference, applies to refrigerated cabinets, display counters and other needs of temperature measurement and display of various equipment.
Instructions:
Please pay attention to your first use. You need to wait for 6s after your setting data, the module will save the date you have set after 6s.
Short press button SET: If you start the time setting mode, the Nixie tube will blink. You could adjust the time T1 and T2 by button+ and button-. Please wait for 5s after your set date, the module will save the date you have set after 5s
Long press button SET: if you start the parameter setting mode. There are two group parameters for your choice: P0 and P1. You could switch P0 or P1 by short press SET. Under the parameter P0 and P1, you could set the timing mode by the button+ and button-.
P0--0: timing mode is 0--999 seconds
P0--1: timing mode is 0--999 minutes
P0--2: timing when the pattern is 0--999
P1--0: T1 time delay relay (T1 timer)
P1--1: T1 delay time relay releases (T1 timer)
P1--2: time delay relay after T1 (T1 timer), then the delay time T2 successor electrical release (T2 timing) ends.
P1--3: T1 delay time relay releases (T1 timer), then the delay time T2 successor Electric energized (T2 timing) ends.
P1--4: time delay relay after T1 (T1 timer), then the delay time T2 successor electrical release (T2 timer), repeat the cycle.
P1--5: T1 delay time relay releases (T1 timer), then the delay time T2 successor Electric energized (T2 timer), repeat the cycle.
Specification:
Temperature range : -50 to 110 °, High temperature protection: 0-110°
Temperature control mode: ON / OFF, Measurement input: NTC (10K 0.5%) Waterproof Sensor
Resolution:When temperature is 0.1°, the resolution is -9.9~99.9, other temperature segment is 1°
Control accuracy: 0.1 °, Hysteresis accuracy: 0.1°, Refresh rate: 0.5S; Hole size:46 x 26.5mm
Supply voltage: DC 12V, Static current: ≤ 35MA, attract current ≤ 65MA, Output voltage: DC 12V, Output power: 20A relay
