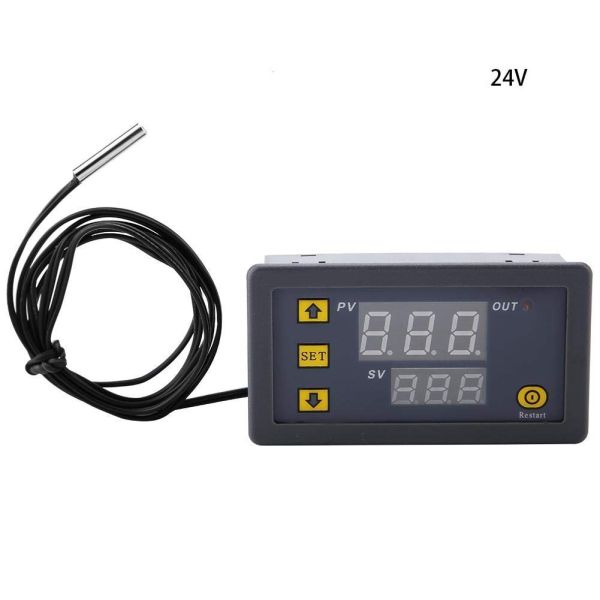

W3230 DC 24V - LED Digital Temperature Controller Thermostat - Heating Cooling Control Switch Instrument NTC Sensor

Product description:

• Mini temperature controller.
• With a clear LED display for better readability.
• Wide temperature measuring range.
• Heating or cooling control.
• All parameters set can be saved after a short circuit.
• Relay output.
• High Control precision 0.1 centigrade
• Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other
• temperature-controlled system

Specification:

• Power Supply: 24V DC; Color of Displaying: red/blue; Sensor: NTC10K Waterproof sensor
• Output: Relay Contact Capacity 10A 220V / 20A 12V / 20A 24V
• Temperature Control Range:-55°-120°; Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
• Measurement accuracy: ±0.1°C; Control accuracy: 0.1°C
• Environmental requirements: -10-60°C , humidity 20%-85%RH; Dimension:79mm*43mm*26mm; Cutting Size:73mm*39mm; Sensor wire: 1 meter
