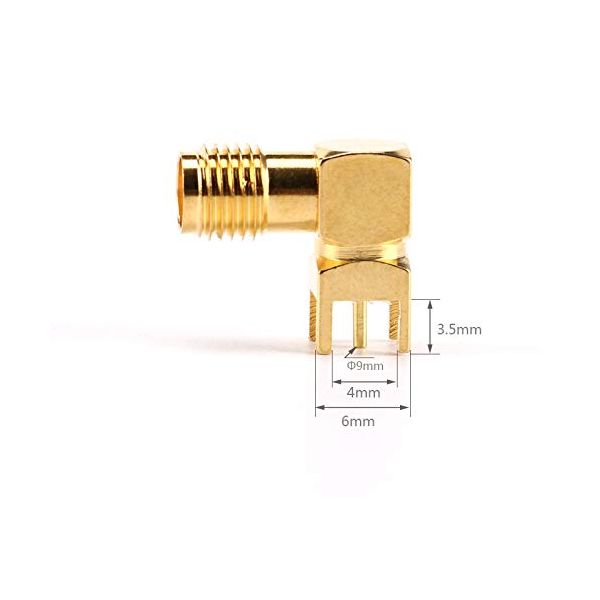

SMA female PCB Thru Hole mount plug Solder Square RF Connector jack - right angle 10.9mm 4.2mm

Product description:

• RF coaxial connector, made of premium materials.
• Bend type Coaxial Connector. Impedance 50 ohms.
• It has the characteristics of the wide frequency band, excellent performance, high reliability, and long life.
• The housing and contact pin is brass plated with hard gold.
• Suitable for connecting RF cable or microstrip line in the RF loop of microwave equipment and digital communication system.

•   Material: Copper; Color:
• Temperature range: -65~+165°C (PE Cable -40~+85°C);
• Vibration: MIL-STD-202,Method 213;
• Characteristic Impedance: 50Ω;
• Frequency range: DC~3GHz
• Working voltage: 335V maximum (valid value);
• Withstand Voltage: 1000V rms (minimum sea level)
• Contact Resistance; Center Contact≤ 3 mΩ; Outer Contact≤ 2 mΩ;
• Insulation Resistance≥ 5000MΩ;
• Insertion Loss≤0.15 dB/6GHz
• Voltage standing- ratio: VSWR;
• Straight: flexible cable≤1.10+0.002f;
• Semi-rigig cable≤1.05+0.001f;
• Bend: Flexible bent cable≤1.20+0.003f;
• Semi-rigig cable≤1.10+0.001f
• Durability≥500
• Material & Plating: shell: brass gold plated;
• Contact pin: brass, gold plated; Socket: beryllium, gold plated;
• Elastic contact: beryllium, gold plated; Insulator: PTFE;
• Crimp ferrule: copper alloy, nickel or gold plated;
• O-ring sealing: 6146 silastic
