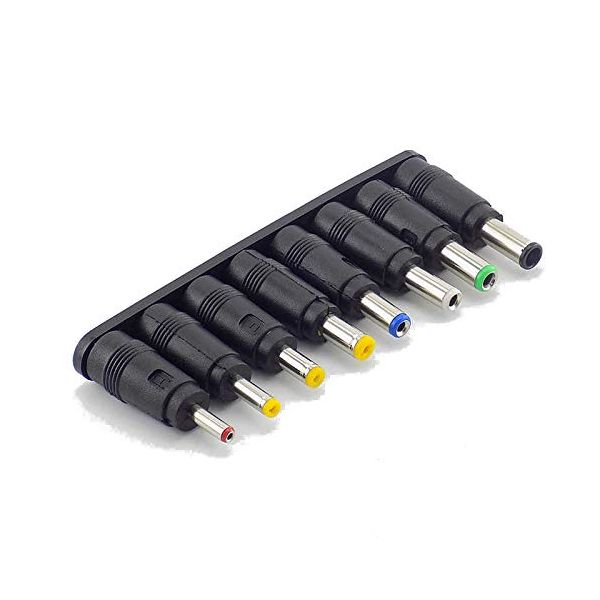

Interchangeable tips for flexible adaptability to different notebook models
Output Tip A: Φ6.4xΦ4.4mm for Sony, Fujitsu, Samsung laptops.
Output Tip B: Φ6.3xΦ3.0mm for Toshiba, NEC laptops.
Output Tip C :Φ5.5xΦ2.5mm for Liteonit,Fujitsu, HP laptops.
Output Tip D: Φ5.5xΦ2.1mm for Compaq laptops.
Output Tip E: Φ5.5xΦ1.7mm for Acer and Sony laptops.
Output Tip F: Φ4.8xΦ1.7mm for Asus laptops.
Output Tip G: Φ4.0xΦ1.7mm for Asus, Acer, and Sony laptops.
Output Tip H: Φ3.5xΦ1.35mm for Sharp, Dell laptops.
Specification:
Side 1: DC 5.5mm (inner dia) x 2.1mm (outer dia) Female
Side2: Choose from 8 different options as - Tip A :Φ6.4xΦ4.4mm / Tip B :Φ6.3xΦ3.0mm / Tip C :Φ5.5xΦ2.5mm / Tip D :Φ5.5xΦ2.1mm / Tip E:Φ5.5xΦ1.7mm / Tip F :Φ4.8xΦ1.7mm / Tip G :Φ4.0xΦ1.7mm / Tip H :Φ3.5xΦ1.35mm
Voltage Rating: 1 to 100V DC
Current Rating: 4A
Application: Laptop power supply pin converter, tablet, any other DC devices
