Use top quality (A-level) protective integrated circuit IC, from the solution of Japan.
Strong load ability, constant discharge current, use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help to cool.
IC itself has a power balancing function. The circuit is simple and reliable.
Typical voltage detection for each cell. So each battery will be prevented over charged or over-discharged.
Over current and short circuit protection function is very reliable.
Long time short circuit of the load won’t affect the PCB and the battery.
Temperature protection during charging and discharging.
Extreme low power consumption. The consumption of the whole device is less than 50uA.
PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating
Overcharge protection
Over Charge Detection Voltage 4.25±0.025V
Over Charge Detection Delay Time 0.5S
Over Charger Release Voltage 4.19±0.05V
Cell balancing
Cell balancing Detection Voltage 4.18V
Cell balancing Release Voltage 4.18V
Cell balancing Current 35±5mA
Over-discharge protection
Over-Discharge Detection Voltage 2.8±0.05V
Over-Discharge Detection Delay Time 0.5S
Over Discharger Release Voltage 3.0±0.05V
Over-current protection
Over Current Detection Voltage 150mV
Over Current Detection Delay Time 9MS
Over Current Protection Condition Disconnect the load
Short Protection
Detection Condition Exterior Short Curcuit
Detection Delay Time 250uS
Release Condition Disconnect the load
Temperature Protection: 75℃
Internal Resistance MOSFET ≤10mΩ
Specification:

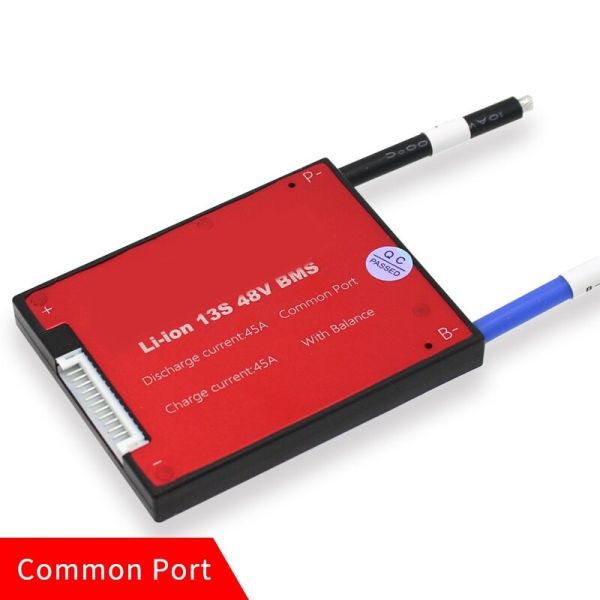

Charging Voltage 54.6V; Output Voltage: 48V; Application: 3.7V lithium battery
Constant Charging Current 45A; Maximal Continuous Discharging Current 45A;
Peak Discharging/Over Current Protection Current 180A
With Balance Function: yes; Waterproof and dustproof: yes
Overcharge protection: yes; Short circuit protection: yes; Over-discharge voltage protection: yes;
