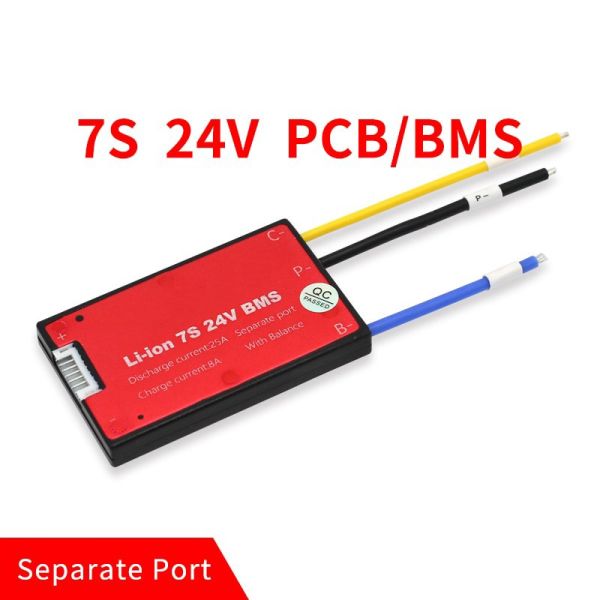

7S 24V 60A IP67 Waterproof Battery Charging Module PCB BMS Protection Board with Balance Function and 60A Separate Port for 7 Series Lithium LicoO2 Limn2O4 18650 Battery Ebike E-bicycle (Red)
Lifepo4 6S/7S/13S 24V 36V 48V - 25A BMS Battery Management System PCM PCB - for 6, 7 and 13 Series Lifepo4 Lithium Ion Phosphate Battery Pack for ebike erikshaw
7S 24V Battery Charging Module PCB BMS Protection Board For 7 Series lithium LicoO2 Limn2O4 18650 battery - With Balance Function - COMMON PORT (25A)
A battery management system (BMS) is an electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and/or balancing it.
Feature:
Lithium custom 08 series MOS tube, low internal resistance, high current, high precision
IP67 international dustproof and waterproof rating Achieve international IP67 dustproof and waterproof grade, which can protect against short-term immersion and effectively solve the erosion of chips due to rainy or wet weather.
Additional solder terminals for easy soldering In order to facilitate the customer's better wiring, the company thoughtfully designed the solder terminal wiring method to improve the customer's wiring efficiency.
Specification:
common Version : Common port for Charge/Discharge; Suitable for 7 string 18650 batteries or polymer lithium battery series combination, it has balancing function in-built; Voltage: 24V Over discharge voltage: 2.8V Over charge pressure: 4.25V Rated voltage: 3.7V Charging voltage: 29.4V
Charging Current: 25A, Maximal Continuous Discharging Current:25A, Peak Discharging Current: 60A Over Current Protection Current: 60A
Over Current Protection Condition: Disconnect the load Short Protection Detection Condition:Exterior Short Curcuit Detection Delay Time:250uS Internal Resistance: MOSPET ≤10mΩ
Release Condition:Disconnect the load Temperature Protection: 65℃ or 75℃
