When charging, battery level 0-25% one light is on, other lights off;
25%--50%, the second light flashes, the first light is continuously on;
50%-- 75%, the third light flashes, front two lights are continuously on;
75%---100%; the fourth light flashes, front three lights are continuously on.
And four lights are on charging to 100%.
Mainboard Protection Function:
Overcharge protection
Over-discharge protection
Overcurrent protection
The module does not need a battery protection board as it has an inbuilt battery protection system.
Installation Instructions: 1. Circuit board B- connects power negatively,B+ connects positive. Don't inversely connect, it will result in the burning of the board. Make sure there is insulation between power and circuit when installing the battery 2. Press and hold the switch, flashlight LED light starts, then press and hold to turn it off 3. 2A output is not continuous current, it changes according to USB connecting load, automatic current output as per load 4. If the battery is connected incorrectly, the reverse polarity will burn the circuit. So, make sure to check the battery polarity when connecting.
Special Instruction: When connecting the board for the first time, connect the battery and then connect the micro USB charger and charge the battery to full capacity before using it. It is required to prime the IC so that it starts and shuts down accurately
Note: Please allow a 1-3mm error due to manual measurement. Due to the difference between different monitors, the picture may not reflect the actual color of the item.

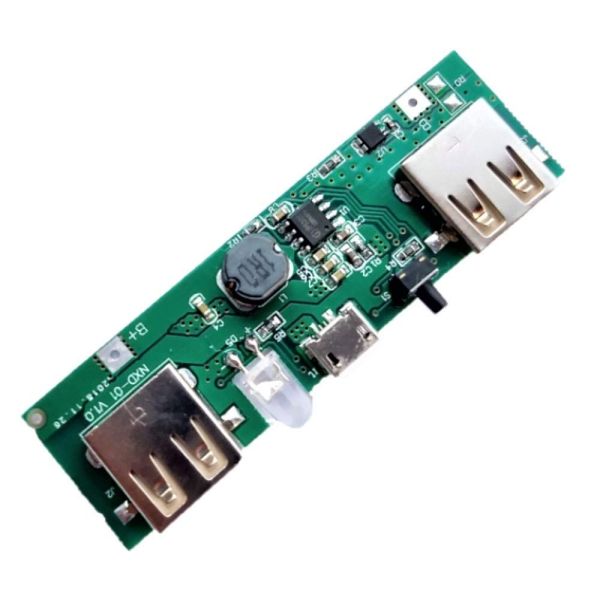

Package Includes: 1x Power Bank Charging Board
Specification:
Input Voltage: 5V
Input Current Rating: up to 2.5A
Input Interface: Micro USB
Can use any mobile power supply rated 5V
Output: 5V 1A or 5V 2A
Output Interface: Dual USB output: 5V/2A
Chipset: IP5306; 4 onboard SMD LED to display the battery charge level
