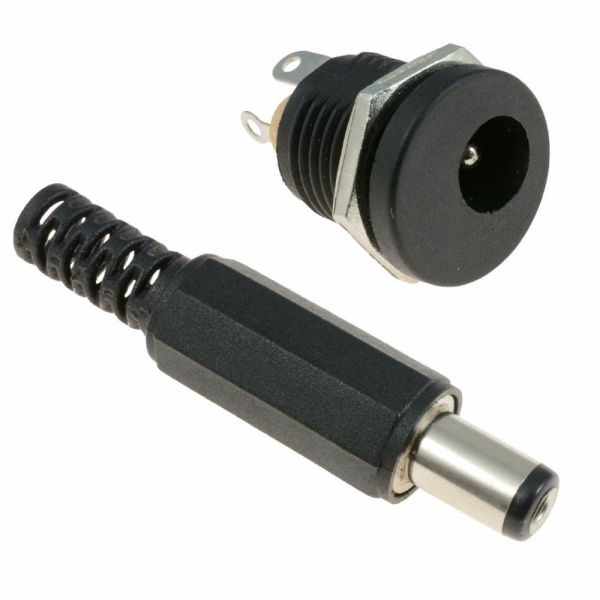

Metal panel mounting plastic/metal 2.1mmx5.5mm DC socket 2 terminal type-positive & negative Fitting hole of 7.8mm required. Complete with rear fixing locking nut. It will take 3.2mm push-on connectors or solder fit. Requires total clearance behind the panel of 13mm
Contact rating: MAX 3A 12V DC
Connector size: 2.1mm x 5.5mm x 9mm
Product size: 10mm x 10mm x18mm
Max panel depth: 3mm
Fitting hole of 7.8mm required | Requires total clearance behind a panel of 13mm
