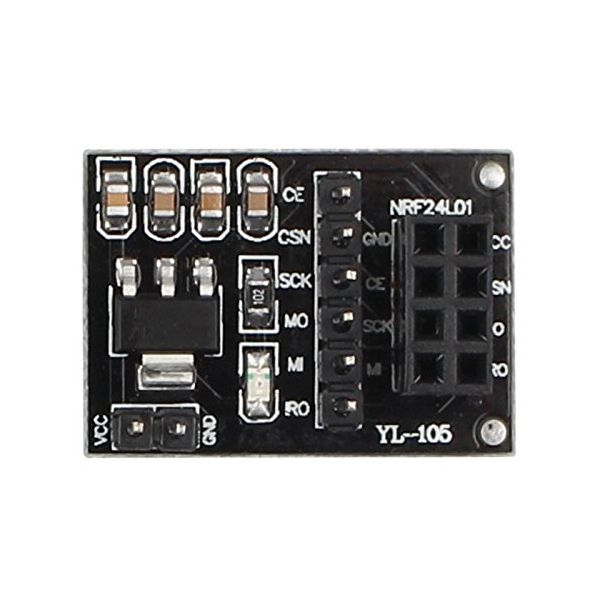

NRF24L01 wireless module operating voltage is generally 3.3v, while the ordinary microcontroller board is operating at 5V. This module will convert the 5V to 8V microcontroller signal to 3.3v signal. The adapter is fully compatible with Arduino, raspberry pi and other commonly available microcontroller development boards. The module comes with an M3 fixing screw mounting hole for easy installation Note: This adapter is not compatible with esp8266 or any other esp based wifi chipset. The package contains only the adapter board, it does not include the nrf24l01 wifi module.
8-pin NRF24L01 wireless module can be directly inserted in a female header. With AMS1117 3.3V stable chip, no bother with voltage conversion
Using instruction: VCC on the module is connected with a power source, GND connected to ground, CE, CSN, SCK, MISO, MOSI, and IRQ six input terminals connect with I/O ports sequentially
Supply voltage input range: DC 5 – 8V;
With LED power indicator, convenient to show the status of the power supply
Applied with two-layer PCB board production process, premium, and high quality
